Key Features Technical Data Application Indoor / Outdoor Vacuum Circuit Breaker panel used to Control and protection of the power supply to motors, transformers, capacitors and other feeder circuits. Designed for indoor / outdoor use and is particularly suitable for Electric power plants Substations Industrial plants Commercial buildings Pumping stations Pipeline stations and Transportation systems. Large…
HT Switchgear ( LBS)
Key FeaturesTechnical DataDownload Application One of the basic functions of switchgear is protection, which is interruption of short-circuit and overload fault currents while maintaining service to unaffected circuits. Switchgear also provides isolation of circuits from power supplies. Switchgear is also used to enhance system availability by allowing more than one source to feed a load…
Distribution Transformer
Key FeaturesTechnical Data Application Distribution Transformer is an electrical isolation transformer which converts high-voltage electricity to lower voltage levels acceptable for use in homes and business. A distribution transformer’s function is straightforward: to step down the voltage and provide isolation between primary and secondary. Electrical energy is passed through distribution transformers to reduce high-distribution voltage…

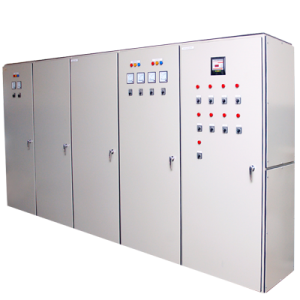

Power Factor Improvement Panel
To obtain the best possible economic advantage from electric power both the generating plant and consumers plants should be operated at high efficiency. To achieve this it is essential to have a high power factor throughout the system.

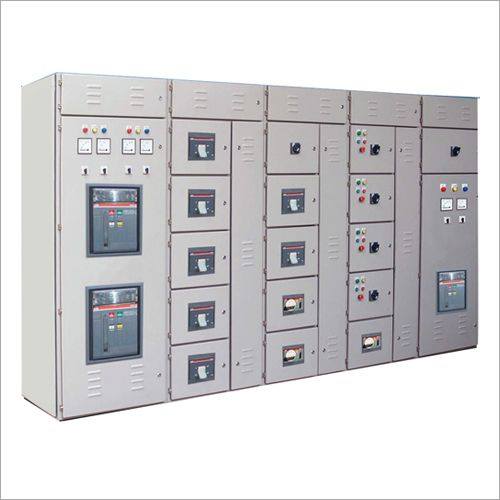

Low Tension Switchgear Panel
Generally electrical switchgear rated upto 1KV is termed as low voltage switchgear. The term LV Switchgear includes low voltage circuit breakers, switches, off load electrical isolators, HRC fuses, earth leakage circuit breaker, miniature circuit breakers (MCB) and molded case circuit breakers (MCCB) etc i.e. all the accessories required to protect the LV system. The most common use of LV switchgear is in LV distribution board. This system has the following parts..

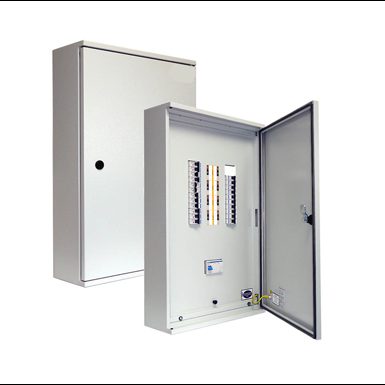

Distribution Board
Key Features Technical Data Application A distribution board (also known as panel board, breaker panel, or electric panel) is a component of an electricity supply system that divides an electrical power feed into subsidiary circuits, while providing a protective fuse or circuit breaker for each circuit in a common enclosure. Normally, a main switch, and in…
