[vc_row][vc_column][vc_custom_heading text=”3-1 Series Online UPS (6 – 20KVA)” font_container=”tag:h2|text_align:center” google_fonts=”font_family:Lato%3A100%2C100italic%2C300%2C300italic%2Cregular%2Citalic%2C700%2C700italic%2C900%2C900italic”][vc_single_image image=”2338″ add_caption=”yes” alignment=”center” onclick=”link_image”][/vc_column][/vc_row][vc_row][vc_column][vc_toggle title=”Key Features” color=”pink” open=”true”]High Reliability
● Advanced DSP (Digital signal processors) technology
● Variable speed fan
● Effective software and hardware protection function, robust self-diagnostic function, and abundant event log for check
● Advanced digital parallel technology
High Availability
● Wide input voltage range, 50 / 60 Hz frequency auto sensing
● Linear derating in low voltage input reducing battery discharging times, extending the service life of battery
● Dual-input design, supporting independent bypass
● Output power factor improved from 0.9 to 1, load capacity increased by 13%
● Flexible battery configuration (settable 16 – 20 pcs batteries)
● Charging voltage and current configured by demands
● Ability to switch on the UPS with batteries
● Settable delayed start time when mains power is restored, reducing the impact on power grid or generator
● Two modes of frequency conversion: 50 Hz input / 60 Hz output or 60 Hz input / 50 Hz output
High Usability
● LCD+LED display, multi-functional keys operation, friendly human-machine interface
● Powerful background software for parameters configuration and online updating
● Compact internal layout, miniaturized the complete unit for small footprint
High Intelligence
● Advanced multi-platform communications: RS232, USB, RS485, SNMP and dry contacts communication interfaces
● Intelligent battery management, automatic floating / equalizing charge control, charger dormancy control, increasing battery life by 50%
Energy Conservation and Environment Protection
● Active power factor correction (APFC), input power factor up to 0.99
● High efficiency 95% (up to 98% in ECO mode)
● Automatic power On/Off according to the load capacity set by users
● Equipped with self-aging function
Available Options
● RS232 and smart card slot included

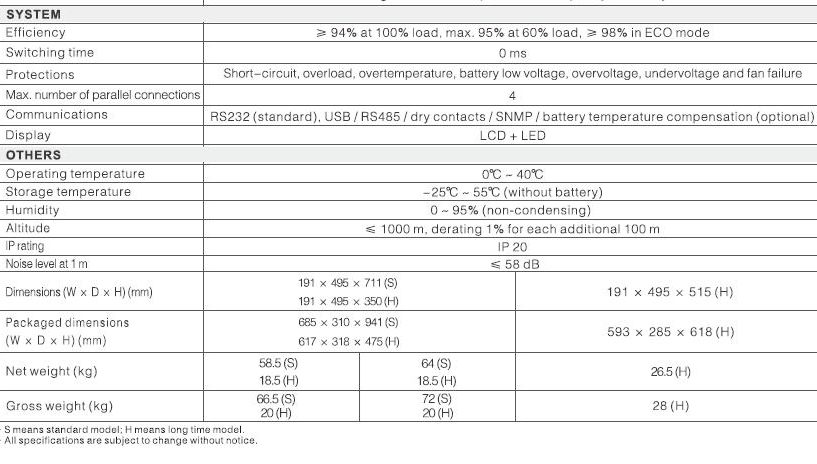

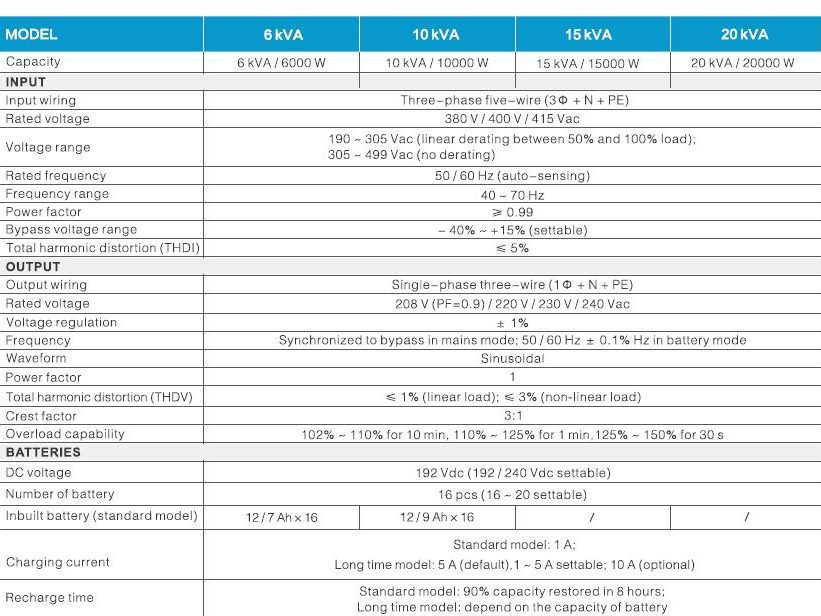

● Optional parallel function, battery temperature compensation, SNMP card, USB, RS485 card, dry contacts, EMD, and SMS alarms[/vc_toggle][vc_toggle title=”Technical Data” color=”pink” open=”true”][/vc_toggle][dt_fancy_image image_id=”2356″ width=”2800″ height=”2100″][/vc_column][/vc_row][vc_row][vc_column][vc_separator][dt_fancy_image image_id=”2361″ width=”3700″ height=”2100″][/vc_column][/vc_row]
